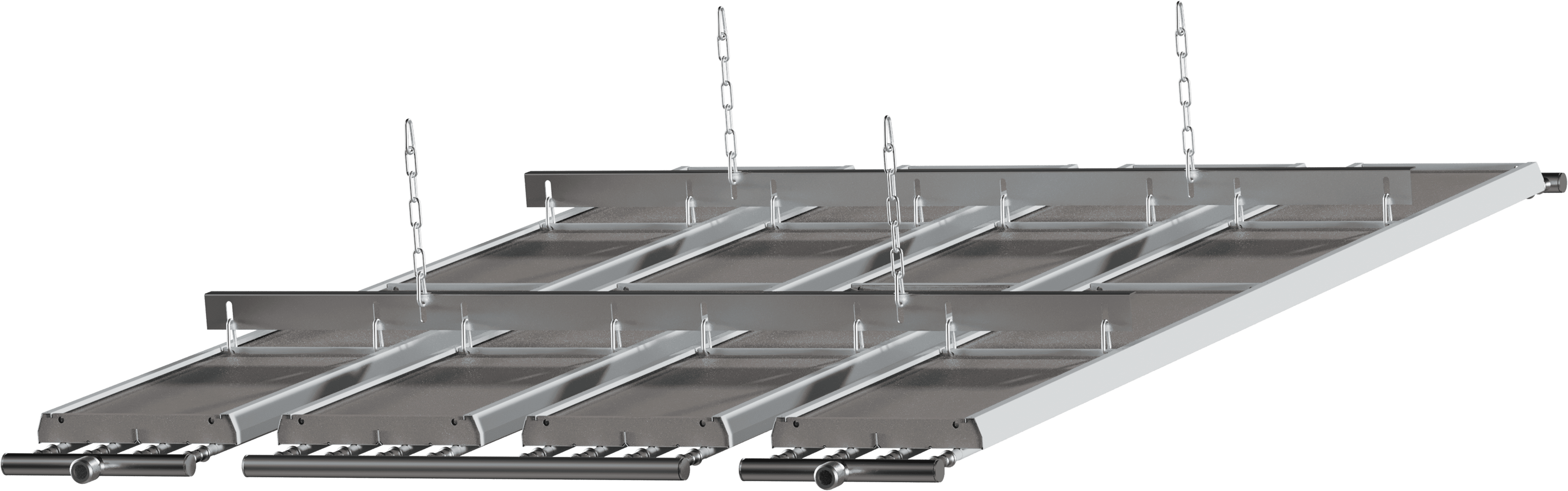

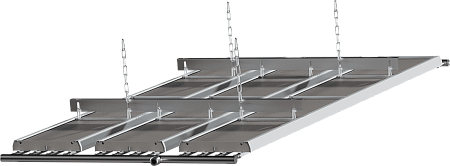

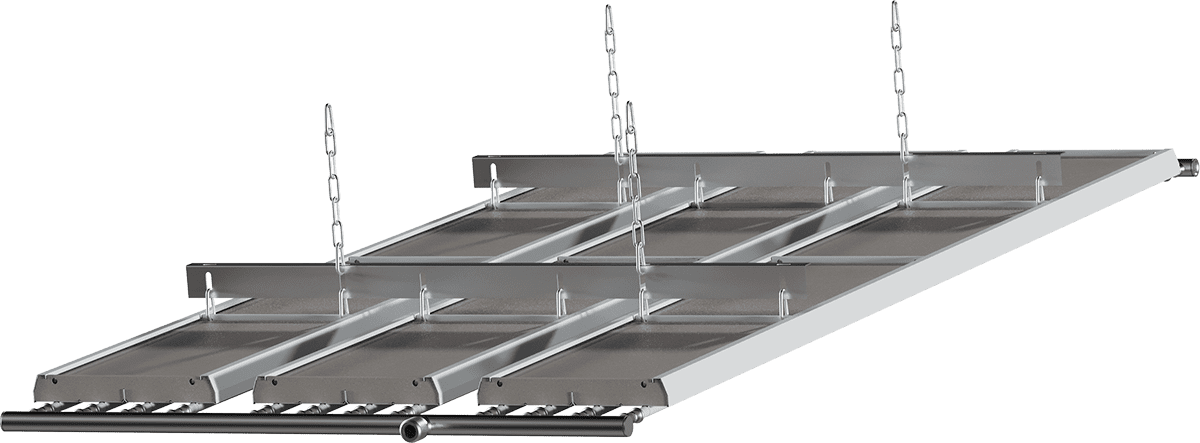

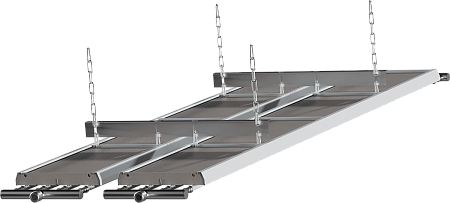

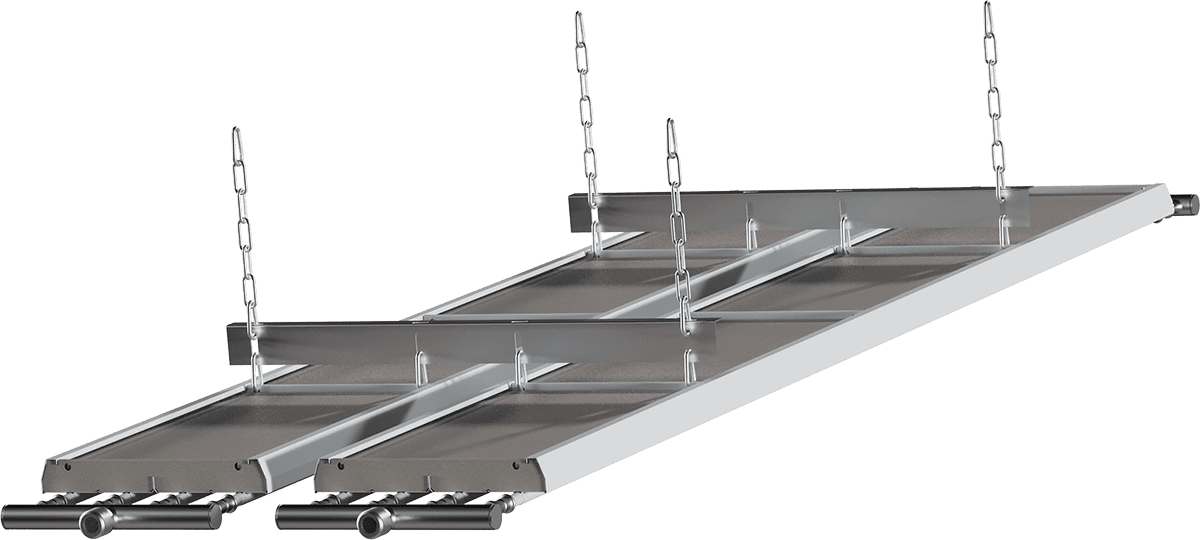

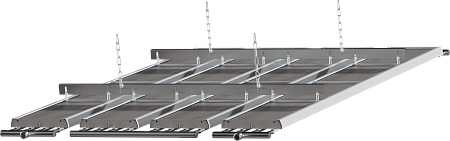

Radiating ceiling panels Ecoterm Pro

The devices are installed in water heating systems and utilise the natural principle of the thermal effect of solar radiation. The heat flux passes through the air and heats the surfaces of objects in the radiation zone. Subsequently, the objects heated in this way emit heat again and also give it to the air through convection. The heat is released slowly, continuously and evenly, without draughts and dust flows, making heating with ceiling radiant panels particularly comfortable, which is an important factor for people working in the radiant zone.

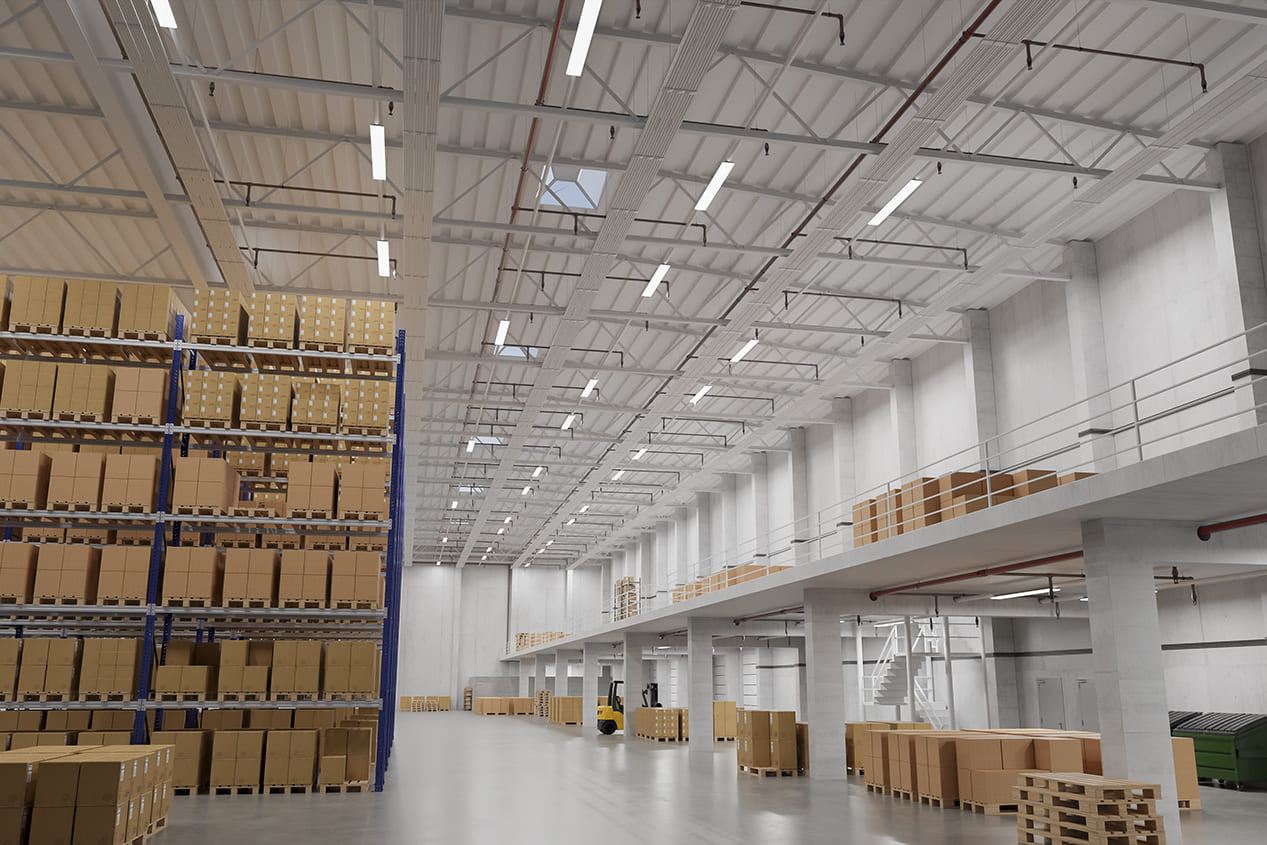

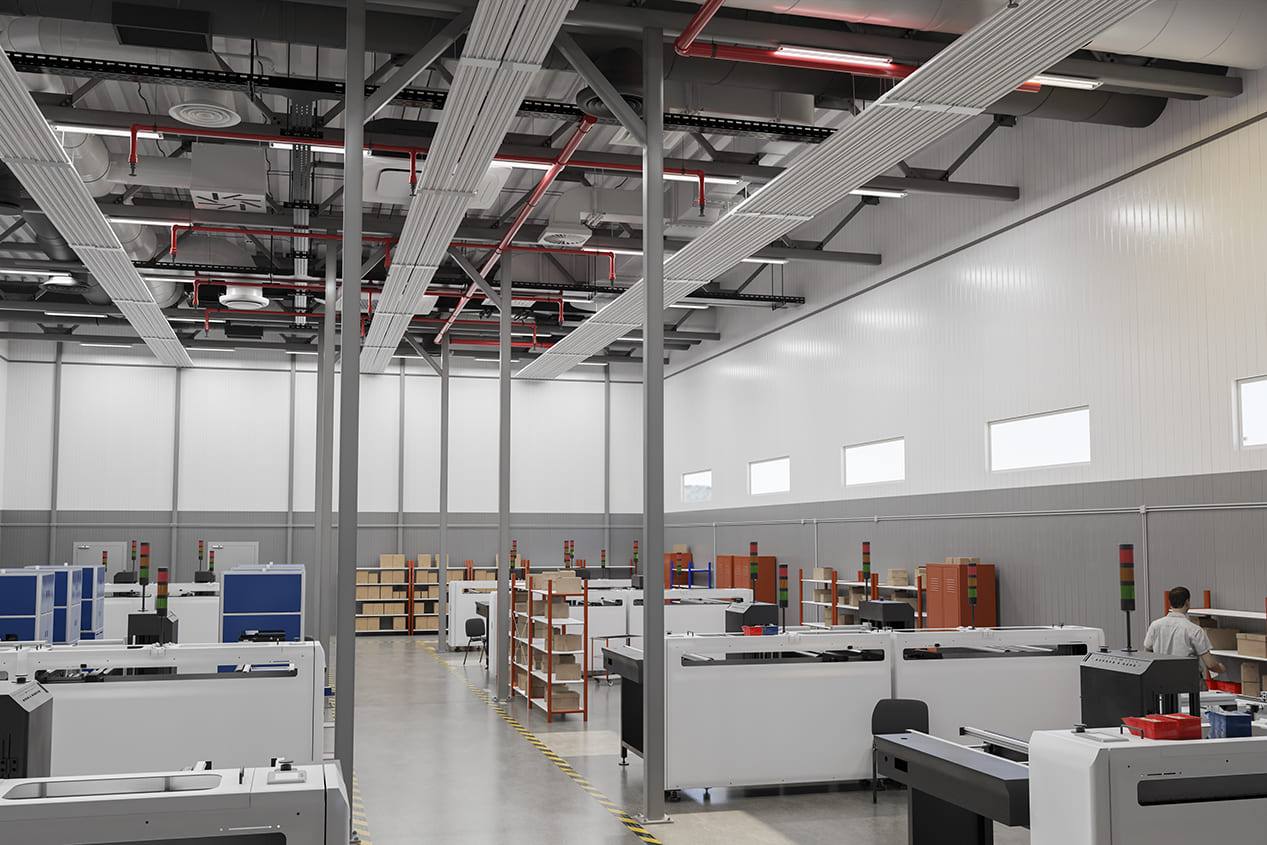

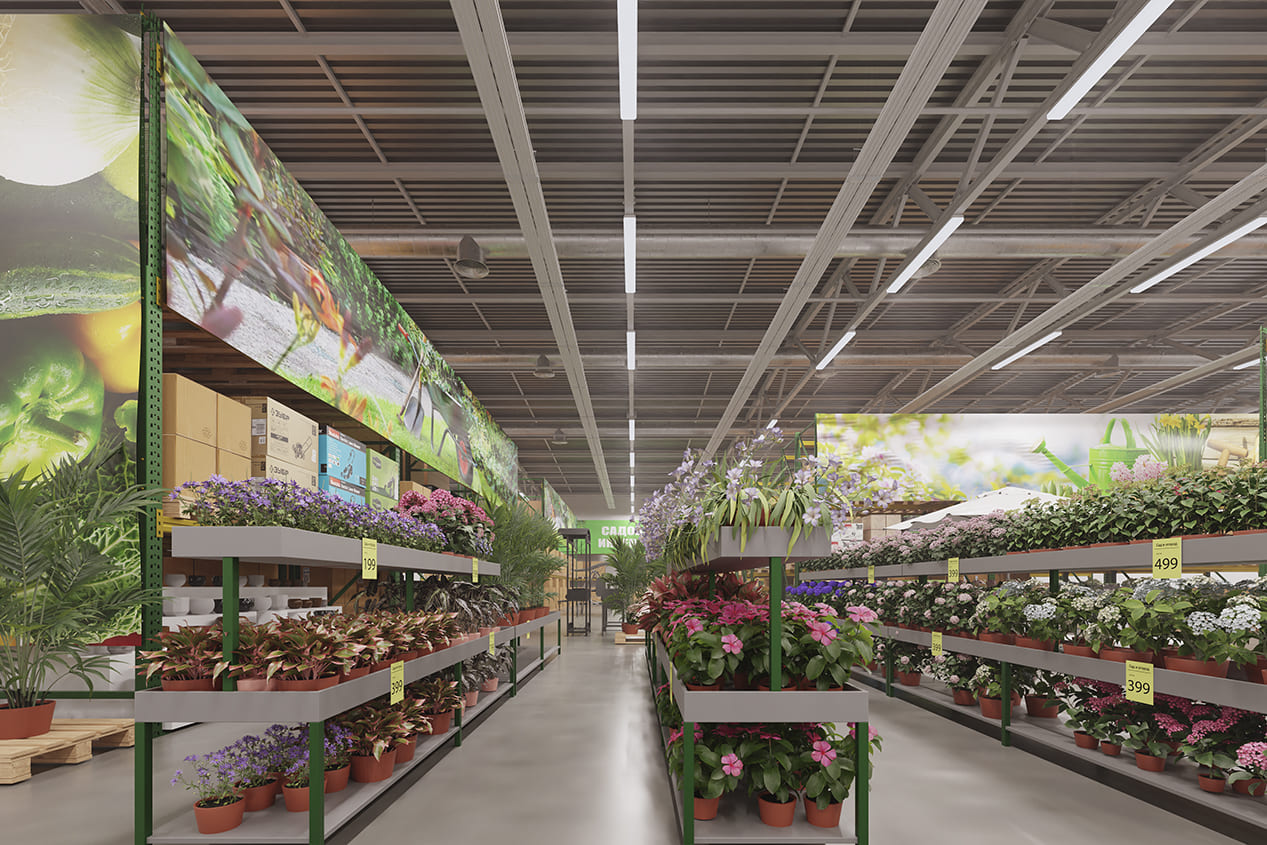

These units are optimally suited for heating large volume rooms, as they specifically heat only those areas that are required, e.g. occupancy areas in sports, production and storage areas, etc. This is especially true when several working areas with different climatic comfort conditions have to be created within the boundaries of one room.

The temperature felt by a person approximately corresponds to the average value between the air temperature and the average temperature of the surrounding surfaces. Heat transfer by heated surfaces of floor, ceiling, walls of large area or their combination allows to lower the air temperature in the working area by 2 - 4°C without reducing the comfort level, reducing the consumption of energy resources for heating the coolant. In addition, heating of the room with ceiling radiant panels allows to avoid overheating of the air in the upper part of the room, which additionally reduces heat losses through the enclosing structures.

Ceiling radiant panels have a much higher energy efficiency than conventional heating systems with a small amount of heat transfer medium, which also ensures resource savings and faster heating. At the same time, the energy savings increase in proportion to the volume of heated rooms. That is, in rooms with a higher height, energy savings can reach 40-50%.

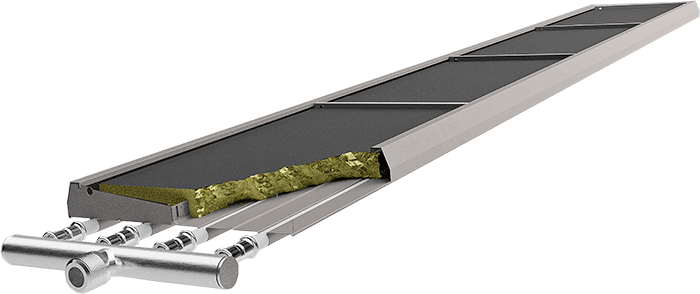

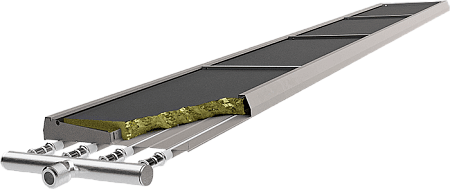

In addition, the unique design of ceiling radiant panel Ecotherm Pro, developed by the design and technological service of JSC "Isoterm Firm", has a number of significant differences from known analogues that increase its energy efficiency, reliability and safety of operation, which is confirmed by the results of tests.

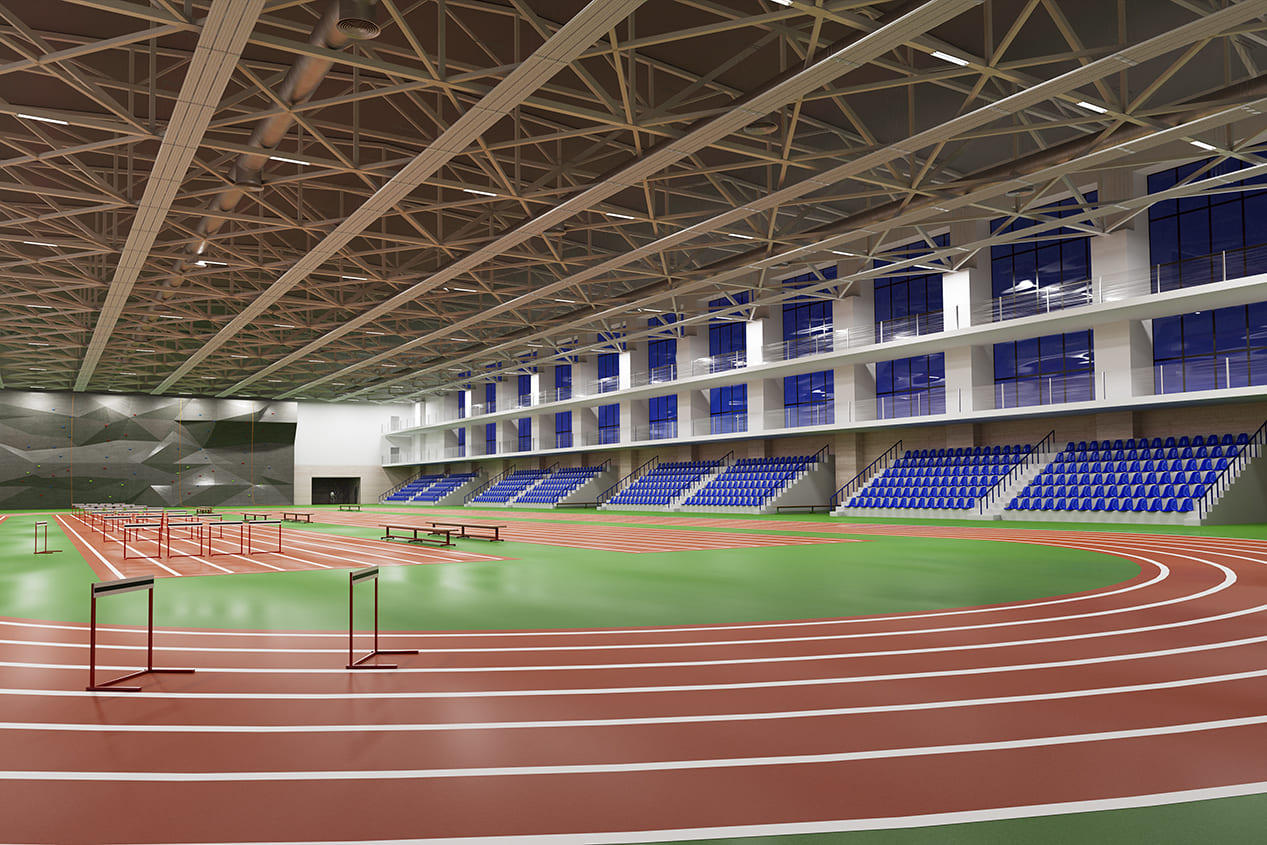

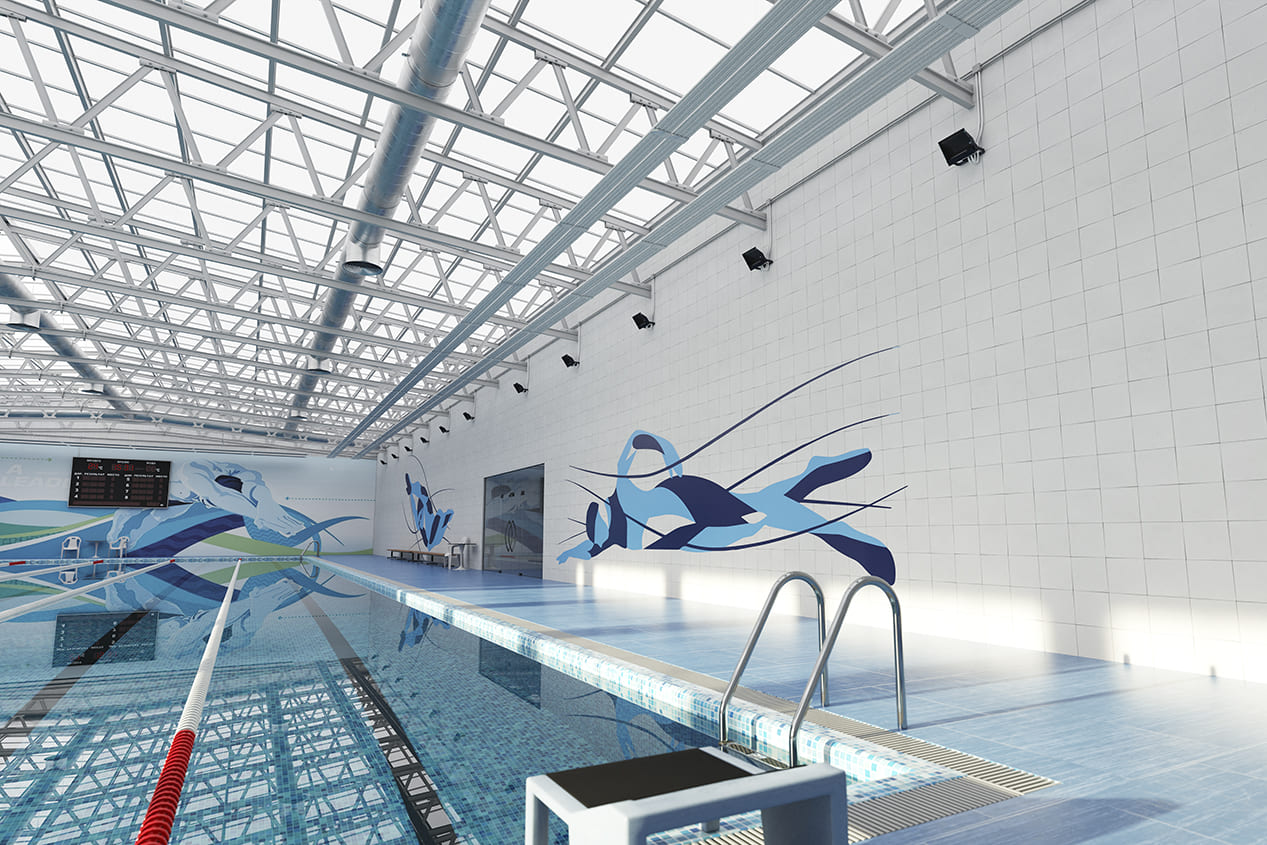

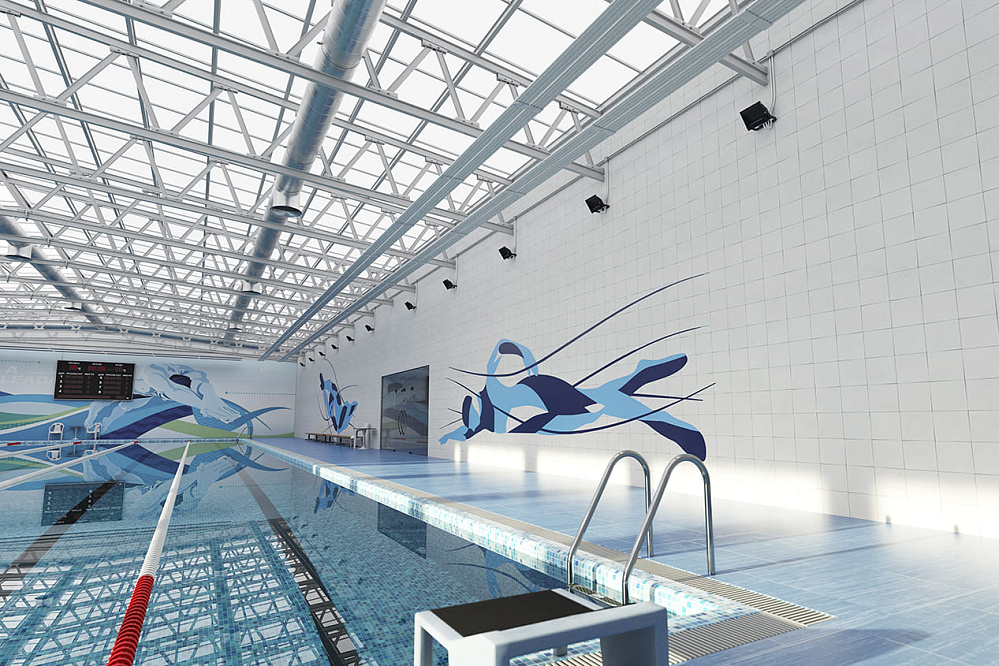

Calculation of the number and configuration of ceiling radiant panels is made individually according to the project. Heating panels can be manufactured according to individual parameters, as well as special versions - with anti-ball netting for sports facilities, with protective cover and for rooms with high humidity.
