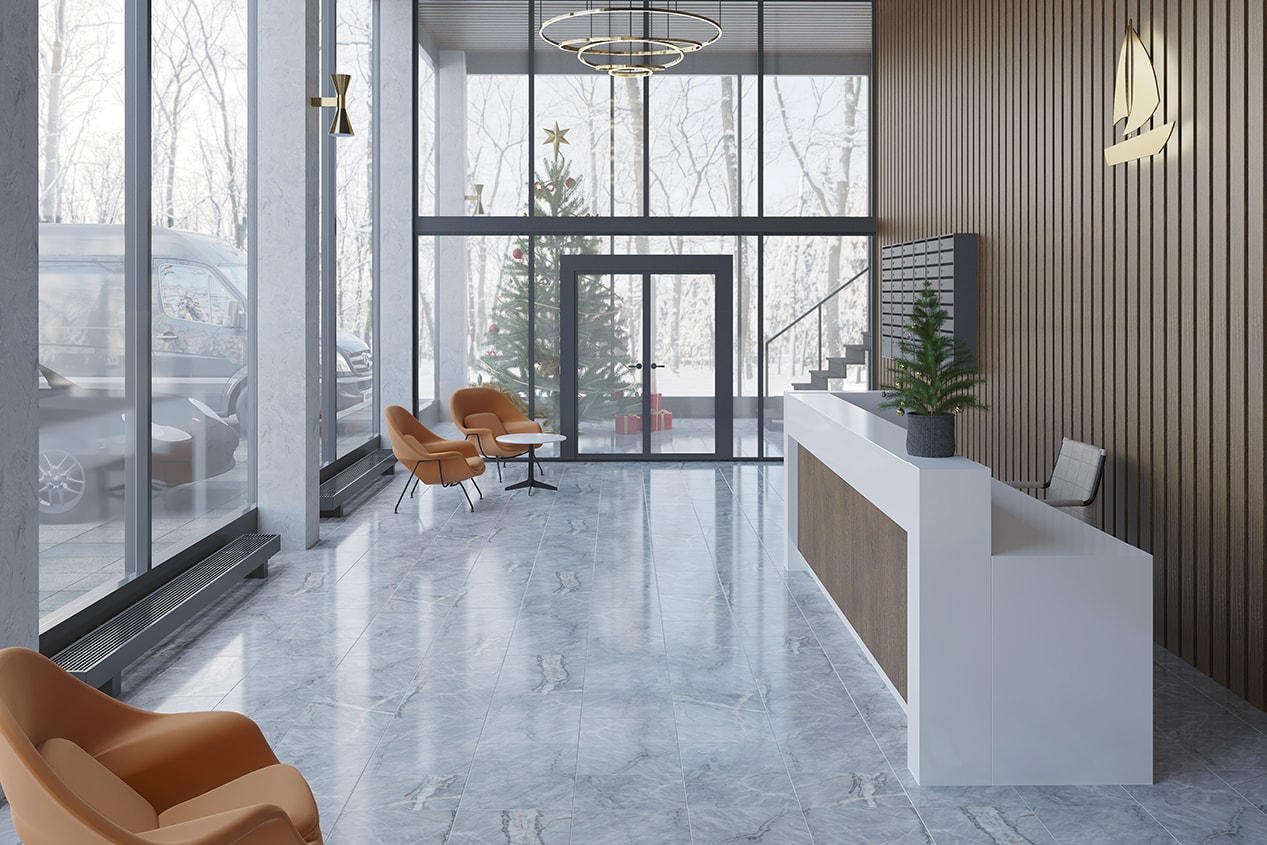

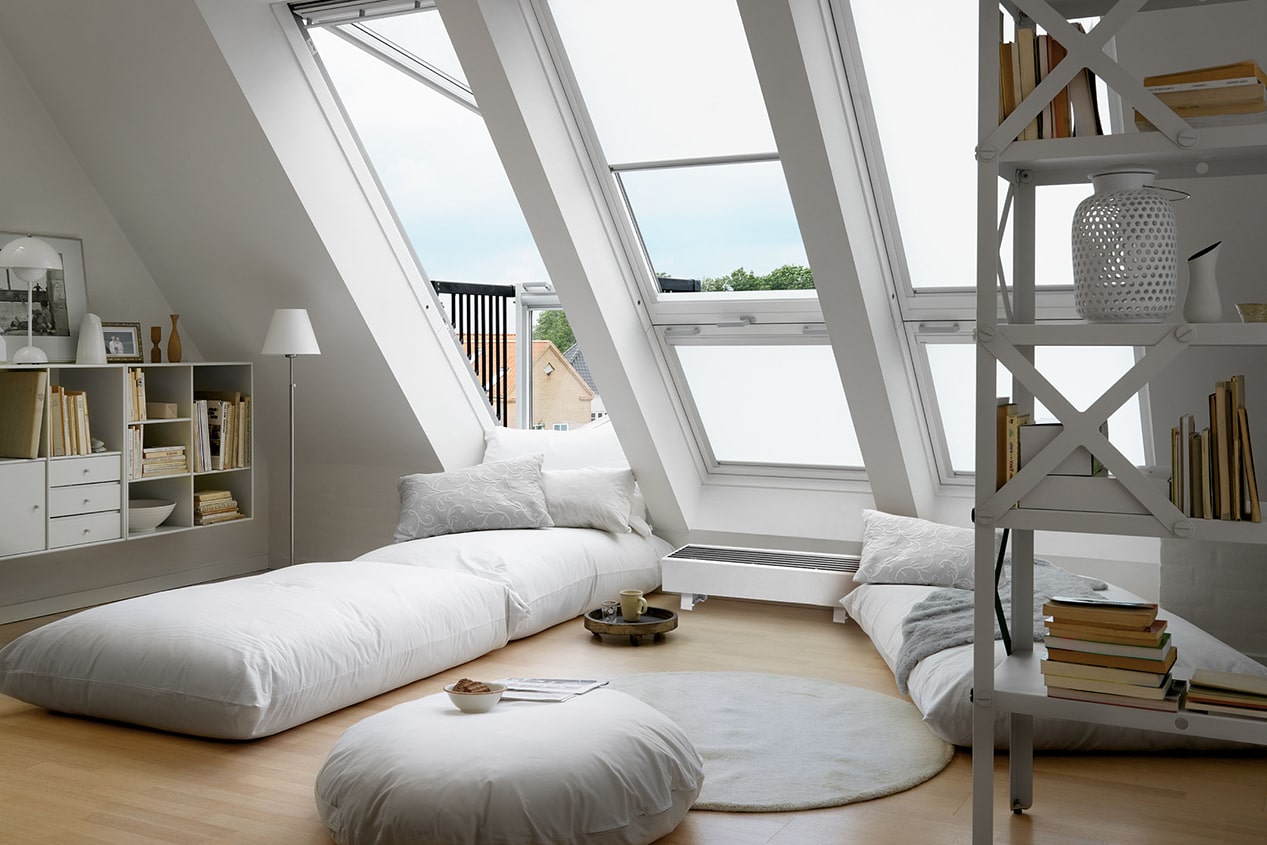

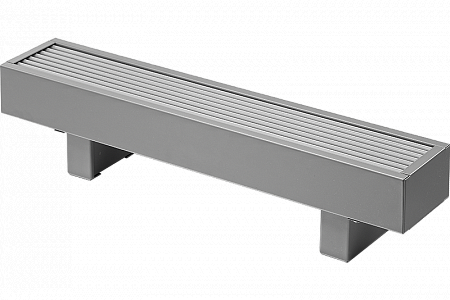

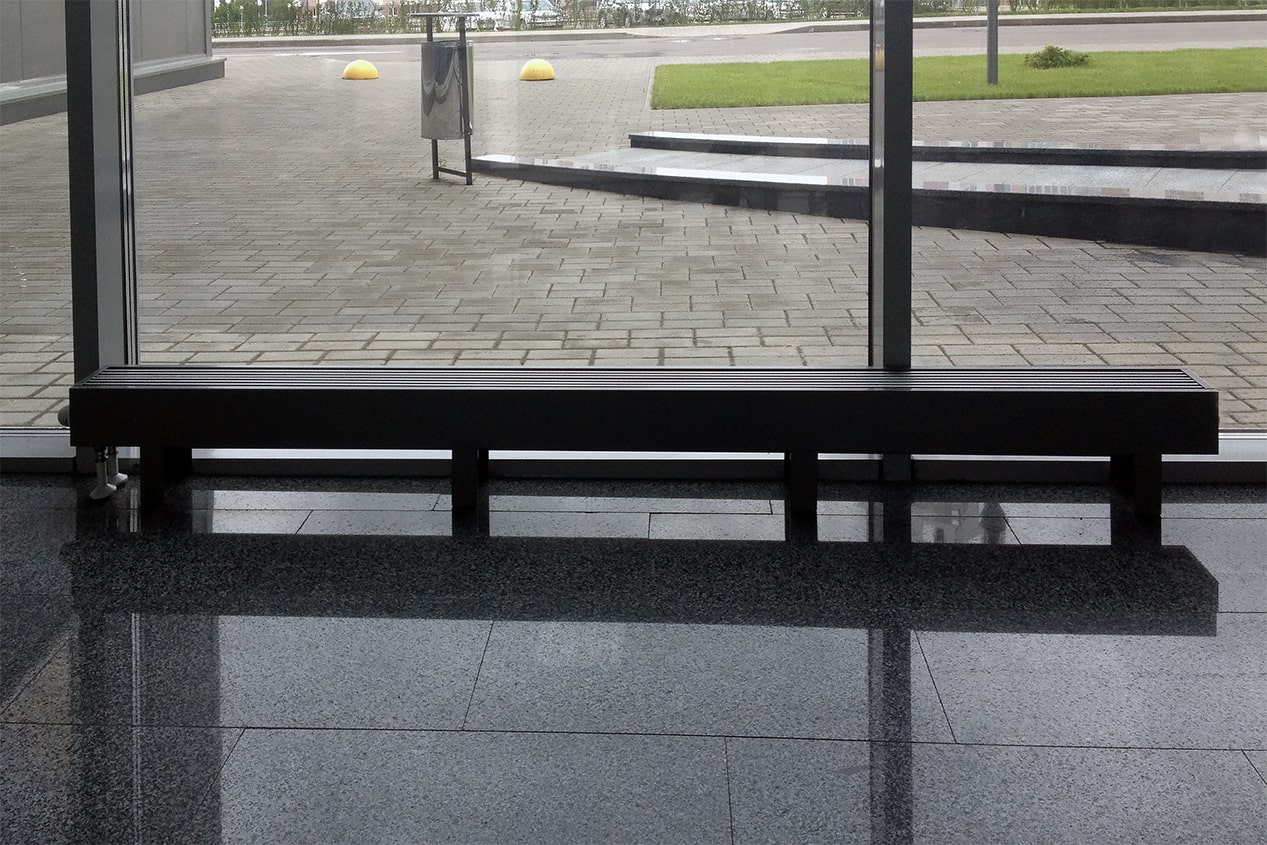

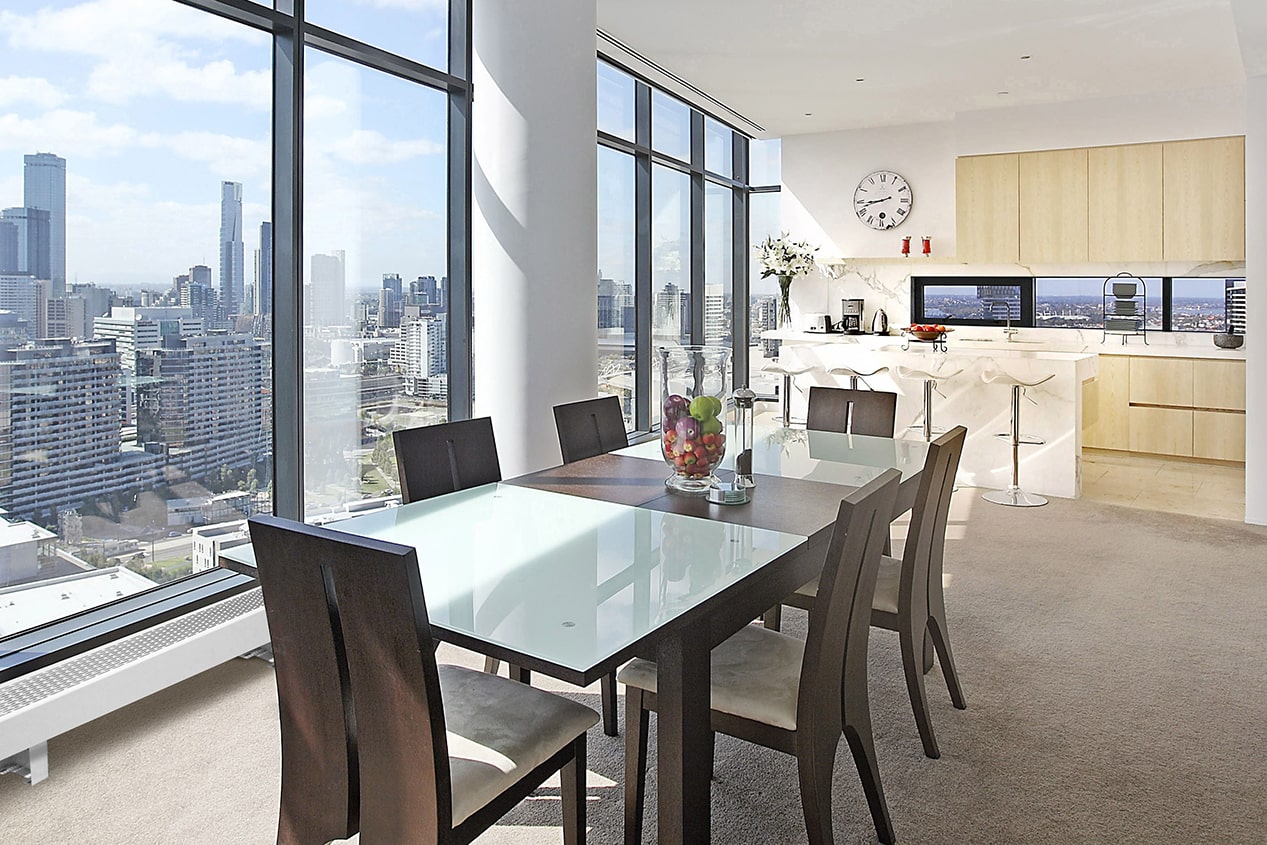

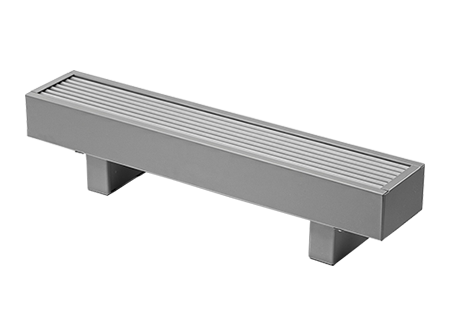

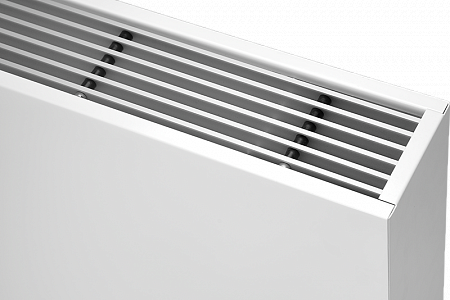

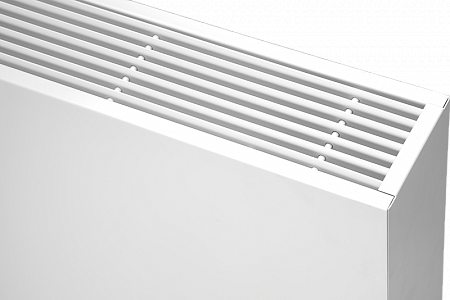

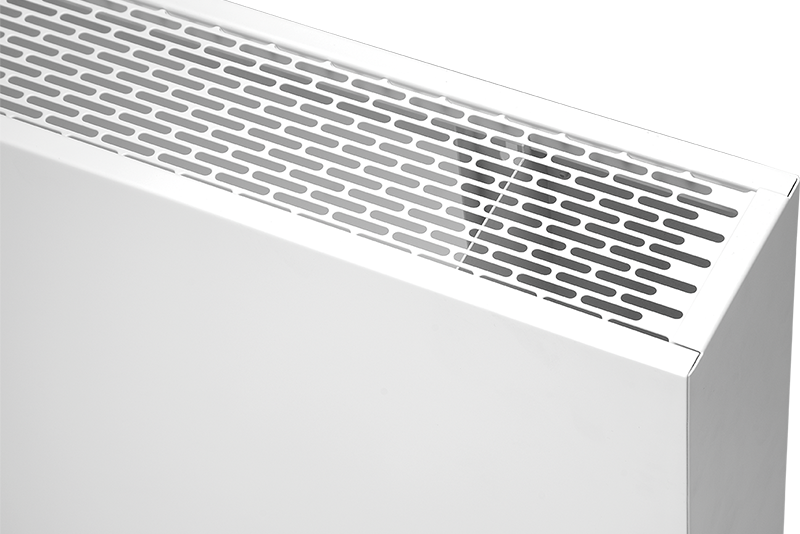

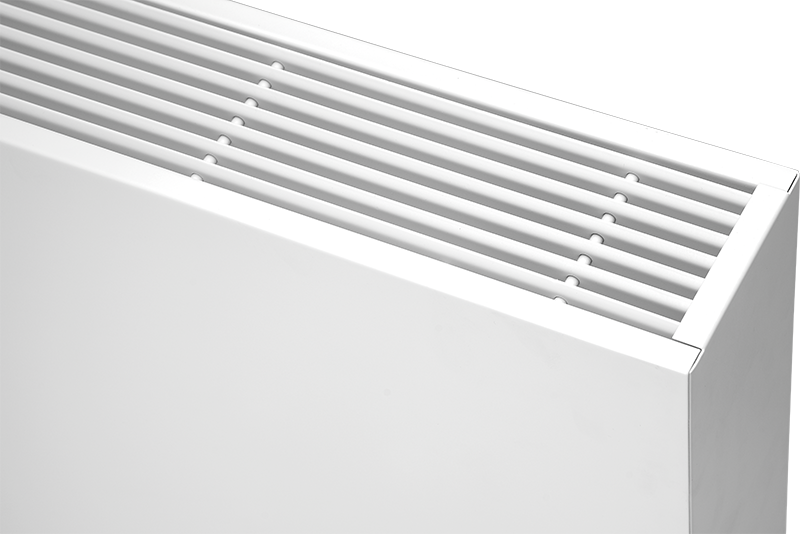

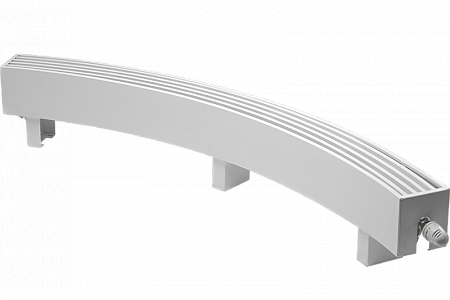

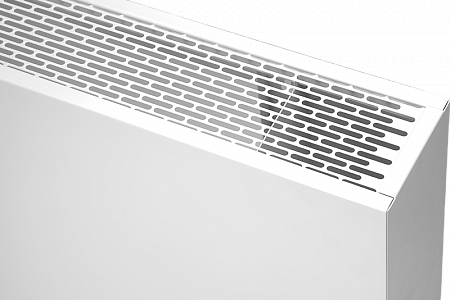

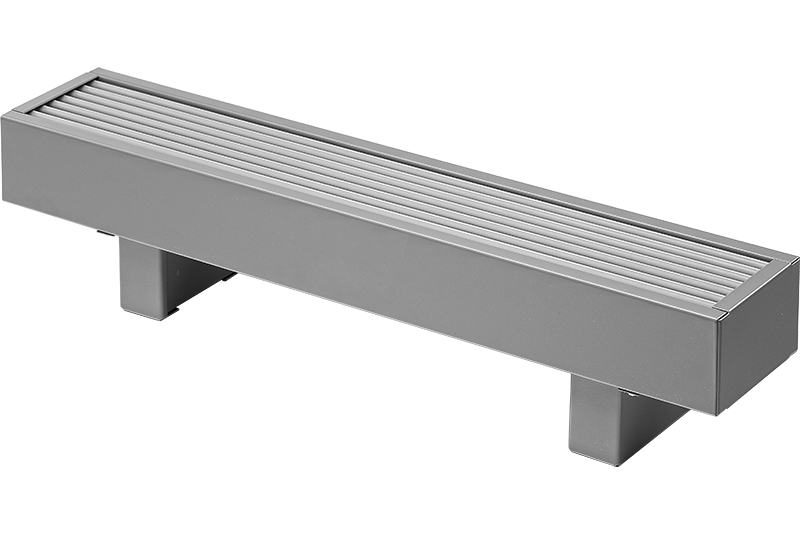

Coral-B convector heaters are designed to create a warm air curtain, that stops the cold air coming fr om the windows of residential and public buildings. Convector heaters are installed in spaces with hot-water heating systems with forced water circulation and forced or natural air circulation.
Coral-B can only be installed in dry spaces.

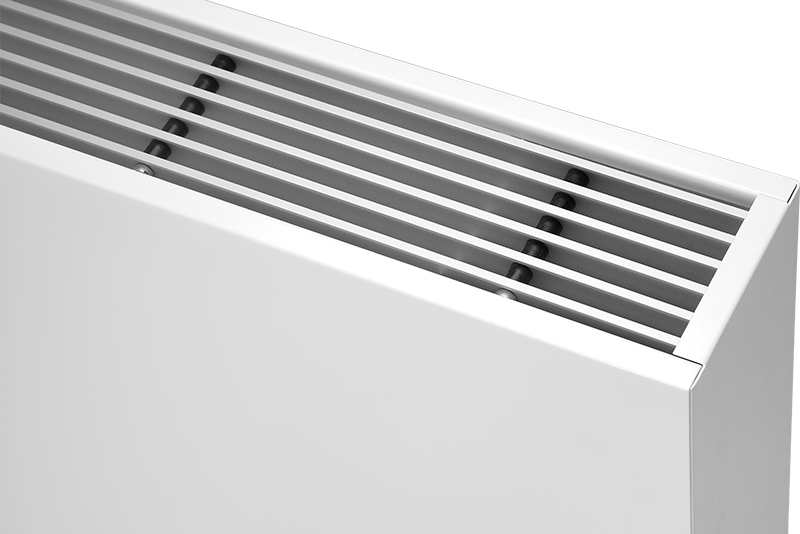

Coral-B convectors are equipped with a 12V set of fans and a built-in ~220V/=12V power supply.
Convector heaters can be installed in spaces with hot-water heating systems, wh ere the water temperature can be up to 130°С and its excess pressure can be up to 1,6 mPa (16 kgf/cm2). If a thermostatic valve is to be installed, water’s temperature and pressure must not exceed the valve’s permissible values.
The VKON convector is powered from a single-phase AC network with a voltage of 220V ± 10% and a frequency of 50 ± 1 Hz.
The level of the noise of the fans is 15… 51 dB (depending on the speed of the fans).
Appliances can also come with a thermostatic valve:
Thermal control set (thermostatic valve, thermostatic head) - 3400 roubles
Thermostatic valve - 2000 roubles
Thermostatic head - 1400 roubles
Standard colours:
RAL 9016, 7021, 9006.
Surcharge on one other colour - 20%.
Surcharge on two or more other colours - 30%.
